Axial Lead Thermal Cut Off Fuse AUPO 5A Ceramic Thermal Fuse Link

Brand Name : AUPO

Model Number : PX-5A-F

Certification : UL VDE PSE CCC KTL

Place of Origin : China

MOQ : 2000

Price : USD $0.1~$0.15 per piece

Payment Terms : T/T

Supply Ability : 50K pieces per month

Delivery Time : 15 days

Packaging Details : 200pcs per bag, 5000pcs per carton

Item Name : thermal fuse, thermal cutoff, thermal link

Part No. : PX-5A-F

Voltage Rating : 250V

Current Rating : 5A

Tf : 84~150 Degree

Mounting Type : axial leaded

Blow Type : One shot operation

Case Type : Metal

UL Listed : Yes

RoHS Compliant : Yes

Halogen free : Yes

MPQ : 100pcs

MOQ : 2000pcs

Standard Lead length : 38+38mm

Body Diameter : 3.6mm

Body Length : 11.5mm

Contact Now

AUPO 250V 5A Thermal Cutoff Fuse Axial Lead Ceramic Thermal Fuse Link

Product Description

Item thermal fuse, thermal cutoff, thermal link
Body Tyle ceramic
Lead Dia 0.6mm
Lead Length 38+38mm
Voltage Rating 250V ac
Current Rating 5A
Mounting Type axial leaded
Body Dia 3.6mm
Body Length 11.5mm
Standards

IEC 60691 Ed4.0, GB/T 9816.2013
Certifications UL VDE PSE CCC KTL


Product Features

  • Rated Current: 250V 5A
  • Advantage: One shot operation
  • High sensitivity to ambient temperature
  • High accuracy and stability
  • Tiny structure
  • Excellent sealing structure

Specification

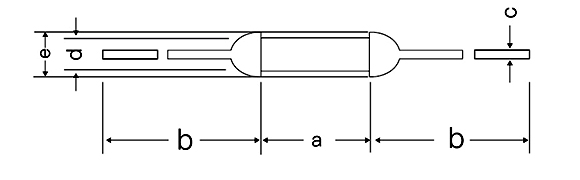

Axial Lead Thermal Cut Off Fuse AUPO 5A Ceramic Thermal Fuse Link(mm)

Model No. a b c d e
P-5A-F 11.5±0.5 38±3 Φ0.6±0.02 Φ3.3±0.2 <3.6

Model NO. Tf(℃)

Fusing-off

Temperature(℃)

 Th(℃) Tm(℃) Ir(A) Ur(V)
IEC Corp
P0-5A-F 84 84 + 0 / -10 82±2 65 200 5 250
P1-5A-F 102 102 + 0 / -10 98±2 80 200 5 250
P2-5A-F 115 115 + 0 / -10 112±3 95 200 5 250
P3-5A-F 125 125 + 0 / -10 120±3 105 200 5 250
P4-5A-F 130 130 + 0 / -10 126±2 107 200 5 250
P5-5A-F 135 135 + 0 / -10 131±3 115 200 5 250
P9-5A-F 138 138 + 0 / -10 135±2 115 200 5 250
P12-5A-F 145 145 + 0 / -10 140±2 126 200 5 250
P7-5A-F 150 150 + 0 / -10 145±3 128 200 5 250

Model No. UL/CUL VDE CCC PSE
P0-5A-F E140847 40000039 2011010205464040 JET0749-32001-1005
P1-5A-F JET0749-32001-1003
P2-5A-F
P3-5A-F JET0749-32001-1004
P4-5A-F
P5-5A-F
P9-5A-F
P12-5A-F ○ JET0749-32001-1006
P7-5A-F E140847

  • Temperature Rating (Tf):Rated opening temperature

  • Holding temperature (Th):Maximum temperature measured at the case end ofthe thermal cutoff at which the thermal cutoff can be maintained for a period for 168 hours without opening.
  • Maximum temperature (Tm):The maximum temperature at which a thermal cutoff can be maintained for10 minutes as an open circuit and can then be maintained at twice rated voltage for a period of 2 minutes during which its mechanical and electrical properties will not be impaired

Structure

Axial Lead Thermal Cut Off Fuse AUPO 5A Ceramic Thermal Fuse Link

Standard Package

200pcs per bag, 5000pcs per carton

Shipping Term:

EXW, DDU, DDP, C&F, FOB

Shipping Methods:

International Express, By Air, By Sea

Test Equipment
  • Axial Lead Thermal Cut Off Fuse AUPO 5A Ceramic Thermal Fuse Link
  • Company warehouse
  • Axial Lead Thermal Cut Off Fuse AUPO 5A Ceramic Thermal Fuse Link
  • Model NO. Tf(℃)

    Fusing-off

    Temperature(℃)

    		 Th(℃) Tm(℃) Ir(A) Ur(V)
    IEC Corp
    P0-5A-F 84 84 + 0 / -10 82±2 65 200 5 250
    P1-5A-F 102 102 + 0 / -10 98±2 80 200 5 250
    P2-5A-F 115 115 + 0 / -10 112±3 95 200 5 250
    P3-5A-F 125 125 + 0 / -10 120±3 105 200 5 250
    P4-5A-F 130 130 + 0 / -10 126±2 107 200 5 250
    P5-5A-F 135 135 + 0 / -10 131±3 115 200 5 250
    P9-5A-F 138 138 + 0 / -10 135±2 115 200 5 250
    P12-5A-F 145 145 + 0 / -10 140±2 126 200 5 250
    P7-5A-F 150 150 + 0 / -10 145±3 128 200 5 250

    Reomax was founded in 1999, and focus on manufacturing fuses for over-current, over-temperature and other circuit protection components. Reomax products are widely used in various kinds of electronic devices, such as consumer electronics, mobile terminal, household appliances, lighting appliances, power supplies and adapters. We have acquired ISO9001/UL/cUL/VDE/CCC/CQC safety regulations certificate.
