| Product Name | 2410 6125 1808 Fast Acting SMD SMT 1A 2A 3A 5A 10A 15A 125V 250V 300V Surface Mount Fuse 6.1mm X 2.69mmx 2.69mm |
| Rated Current | 50mA to 15A |
| Rated Voltage | 125V 250V 300V |
| Material | Ceramic,brass |
| Approval | ROHS/UL |
| Application | - Lead-Free and RoHS compliant
- Inrush withstand capability
- Wide range of current rating(32V/63V/72V/125V /250V / 300V/350V/400V/500V/600V)
- Wide range of high current rating(15A to 100A)
- Excellent environmental integrity
- Operating temperature range:-55 to +125 deg C (consider de-rating)
|

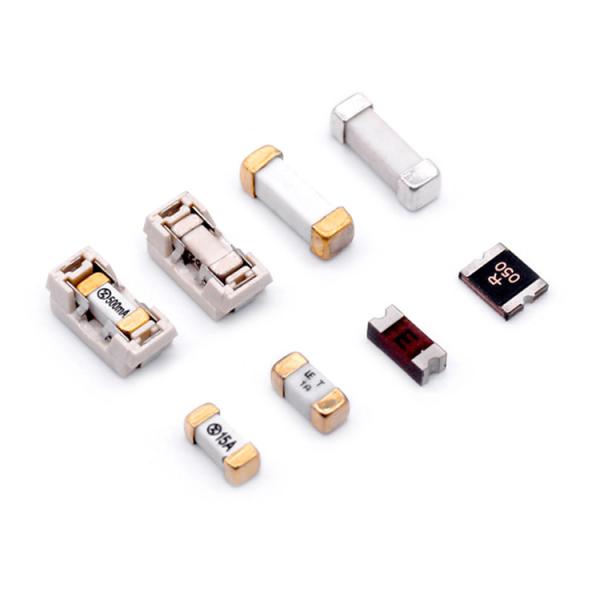

Pictures of 2410 6125 1808 Fast Acting SMD SMT 1A 2A 3A 5A 10A 15A 125V 250V 300V Surface Mount Fuse 6.1mm X 2.69mmx 2.69mm

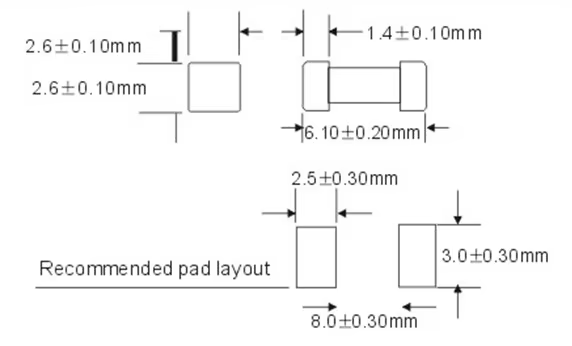

Size(mm)

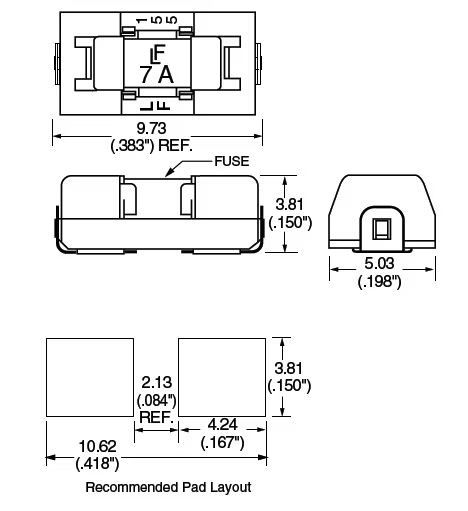

SMD fuse holder size(mm)
Application
•LED driver,Notebook/Laptops,PC computer
•Digital camera,Office electronic equipment
•Networking device,Telecom device
•Industrial equipment,Power supply
•LCD/LEDmonitor,Backlight inverter
Related types of 2410 6125 1808 Fast Acting SMD SMT 1A 2A 3A 5A 10A 15A 125V 250V
300V Surface Mount Fuse 6.1mm X 2.69mmx 2.69mm
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time of 58Vdc Yacht Square Battery Fuse?
A: Generally it is 3 days if the goods are in stock. Or it is 5-10 days if the goods are not in stock, according to the quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is approval ?
A: ROHS/UL of 2410 6125 1808 Fast Acting SMD SMT 1A 2A 3A 5A 10A 15A 125V 250V 300V Surface Mount Fuse 6.1mm X 2.69mmx 2.69mm
